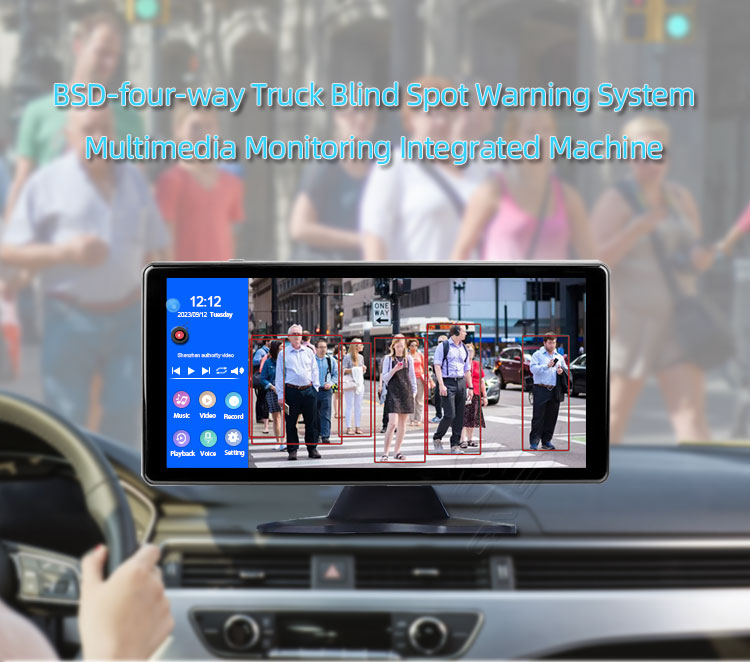

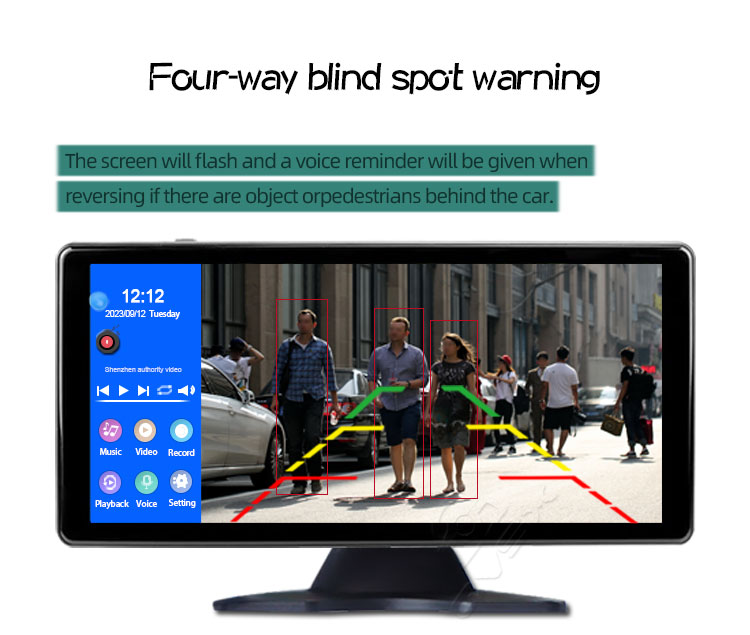

Through 4 wide-angle cameras installed inside/outside of the car body, the images around the vehicle can be collected while playing songs, and transmitted to the all-in-one machine in real time, and the pedestrians in the car can be warned by warning the pedestrians in the blind spot outside the car. With this system , it is possible to At the same time, it reminds drivers and pedestrians that the active safety warning can also visually see obstacles and pedestrians around the vehicle, effectively reducing the occurrence of accidents such as scratches, collisions, and falls. This product can record all driving pictures to avoid "scraping porcelain" disputes.
|
project
|

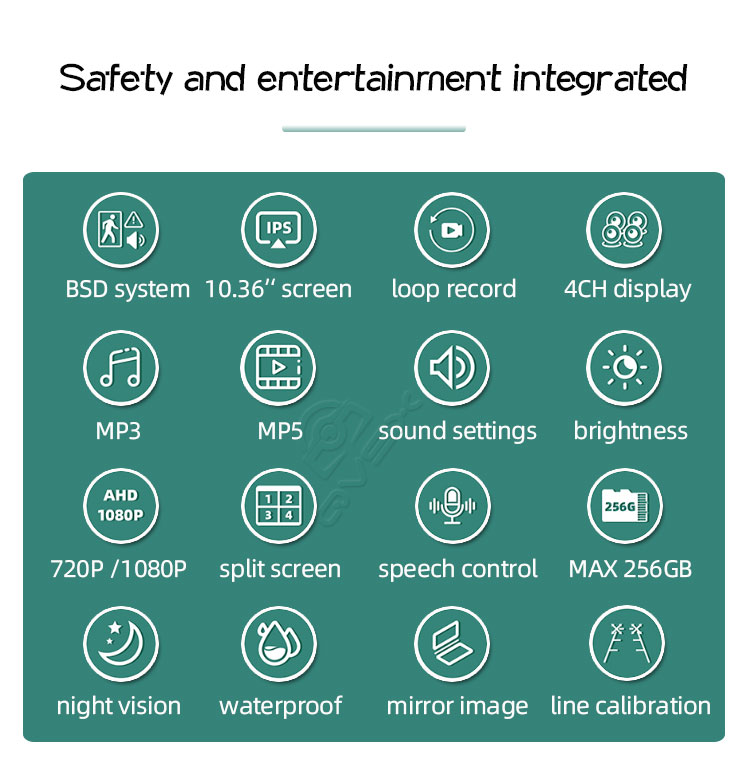

Function introduction
|
Performance
|
|
system
|
operating language
|
Simplified/English /Traditional/Multilingual (optional)
|
|
Operation interface
|
Graphical menu operation
|
|
|
Operation method
|
Key/touch (optional)
|
|
|
video input
|
video input
|
4 AHD HD video input 720P (default)/1080P/720N/1080N
|
|
Video recording
|
default boot recording, no missing seconds, automatically return to the recording interface to perform recording if no operation
is performed for 30s |
|
|
Video format
|
2K , TS , 4-channel video saved separately, fornt (front) , back (rear), left (left), right (right), park (parking monitoring),
five-channel side (side) |
|
|

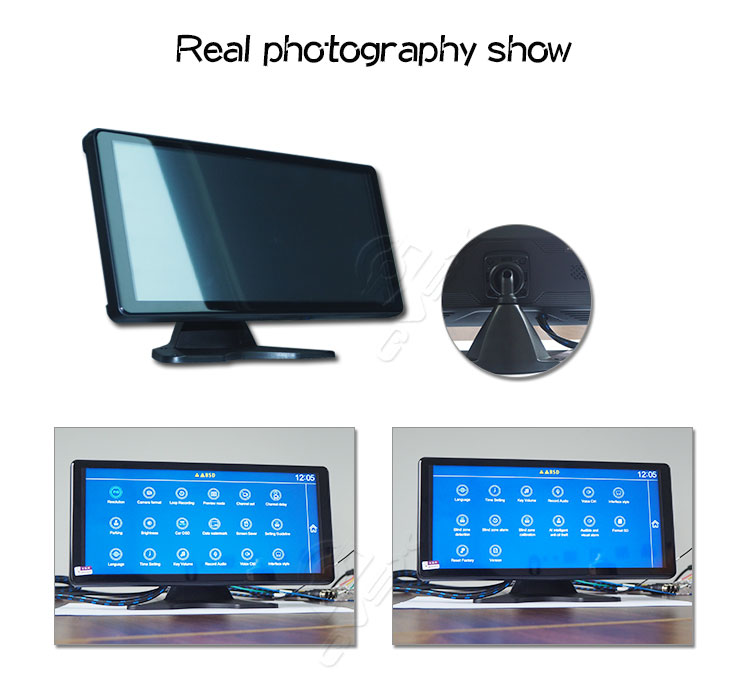

video display
|
real-time display
|

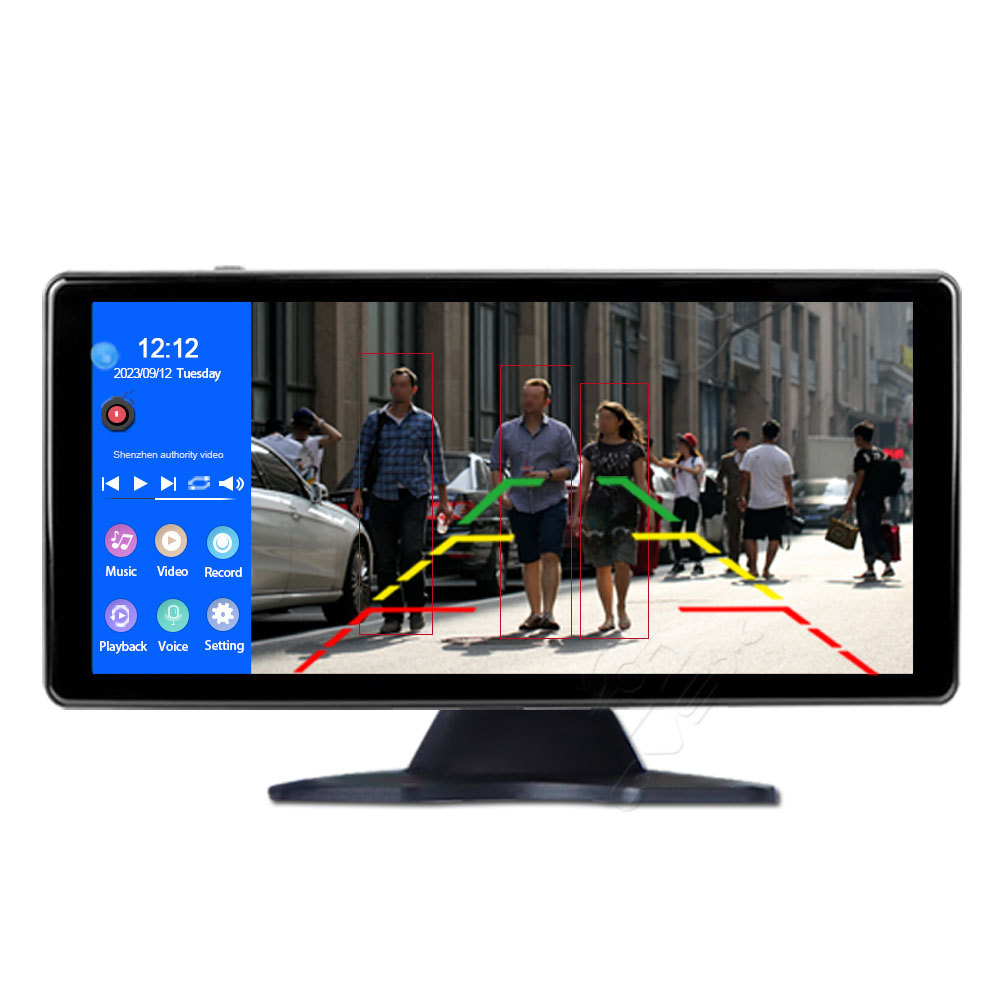

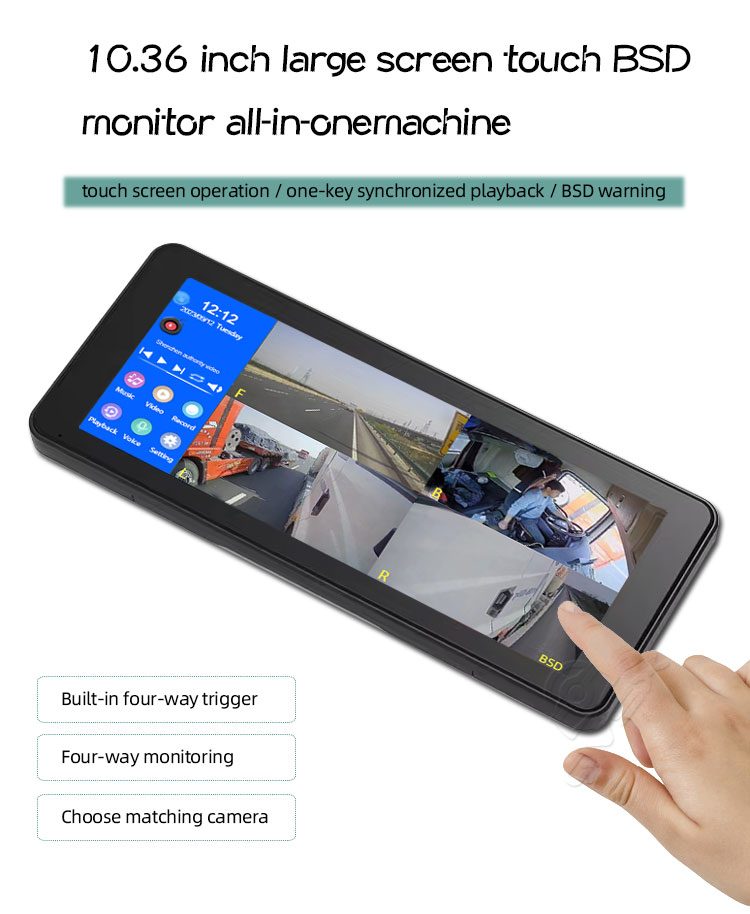

10.36 HD IPS screen, 1600 * 720
|
|
video display
|

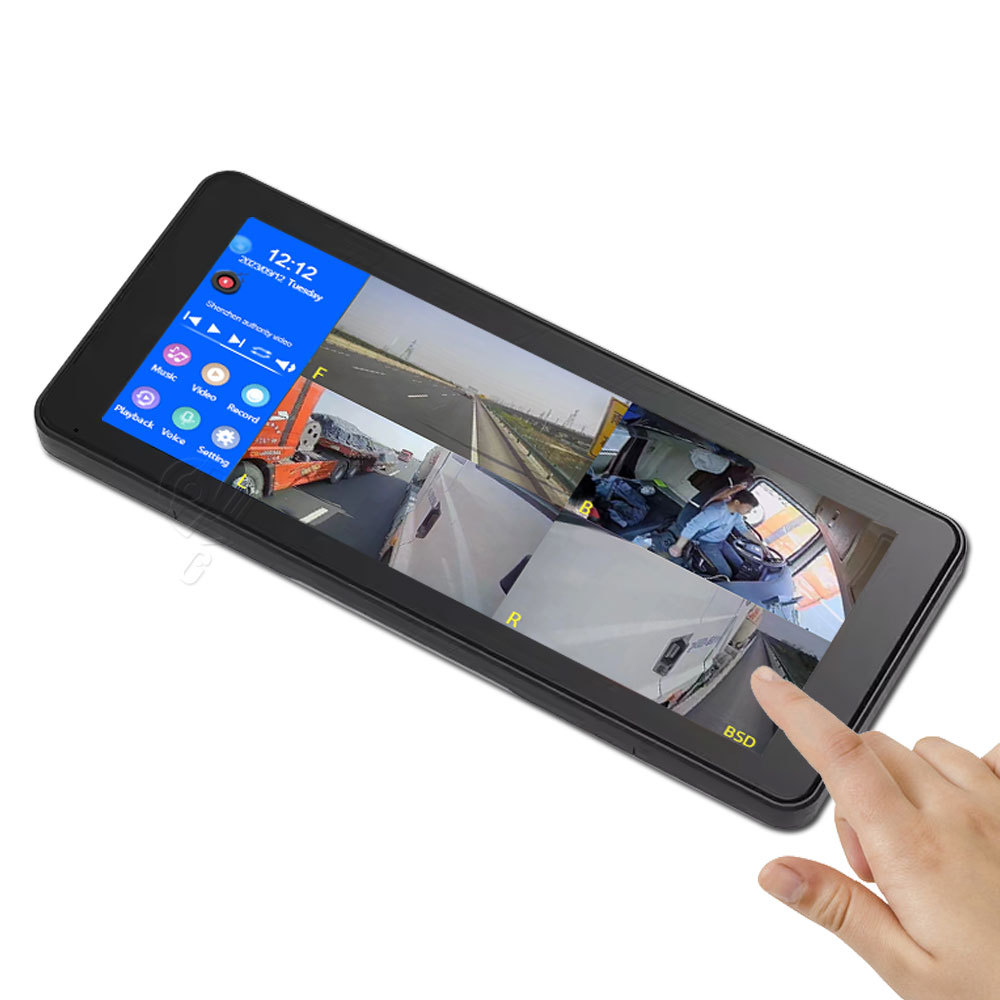

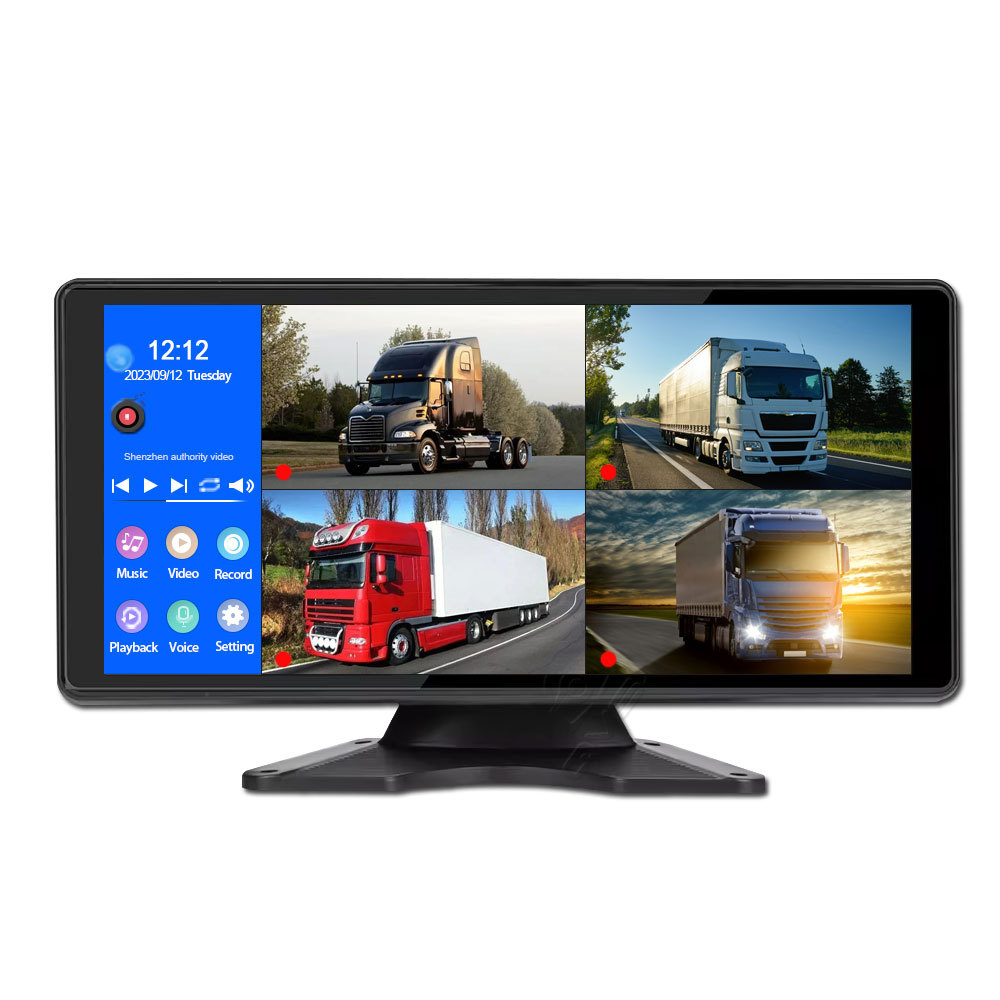

Multi-view display mode /split screen mode
|
|
|
Local playback
|
Play locally, view at any time , or select the playback button
|
|
|
screen protector
|
Can be set to 1 minute / 5 minutes / off
|
|
|
trigger display
|
trigger display
|
the large-screen viewing angle of the corresponding camera
|
|
Video storage
|
SD card
|
CLASS10 U1 or above , minimum 64GB, maximum support 256GB
|
|
audio section
|
microphone
|
Support microphone recording, the menu can be set to close
|
|
voice control
|
Support voice control, a variety of voice control commands (Note: when the outside sound is noisy, the voice control effect may be
affected) |
|
|
Power section
|
power input
|
working voltage is 24V , and it has power protection circuits such as vehicle-grade surge, overload, overvoltage, undervoltage,
short circuit, etc. It is suitable for the power supply environment of various vehicles |
|
Overall power consumption
|
engine detection
|
ACC detection line
|
|
2/ 4 channel video
|
Less than 10W (screen display, 2/ 4-way camera recording)
|
|
|
other
|
Operating temperature
|
-20~65 degrees
|
|
Cooling method
|
Passive cooling
|
|
|
reversing line
|
Adjustable calibration manually _
|
|
|
video duration
|
Video recording time can be set
|
|
|
Channel trigger delay
|
Turn signal delay can be set
|
|
|
Screen mirroring/flipping
|
The four-way screen respectively supports mirror display, supports flip display, and the menu can be set
|
|
|
license plate settings
|
support
|
|
|
time setting
|
support
|
|
|
parking monitoring
|
Can be set to off/1/2/5/10 hours
|
|
|
interface style
|
Multimedia/Concise mode optional
|
|
|

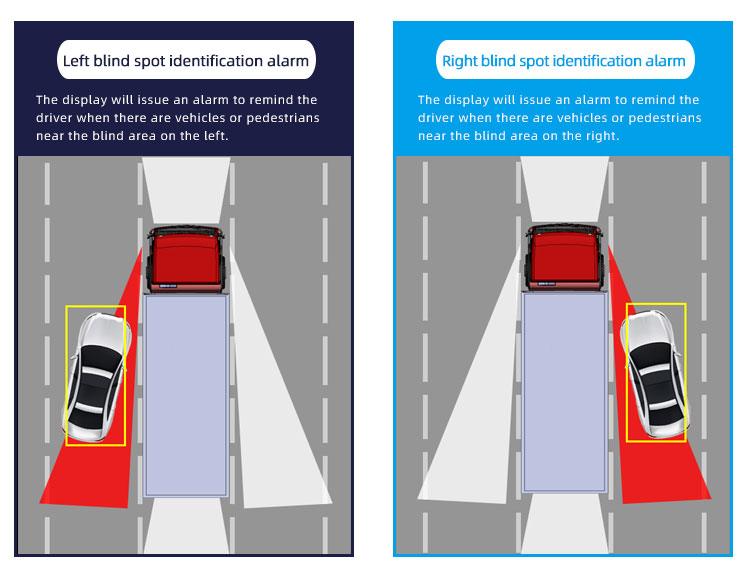

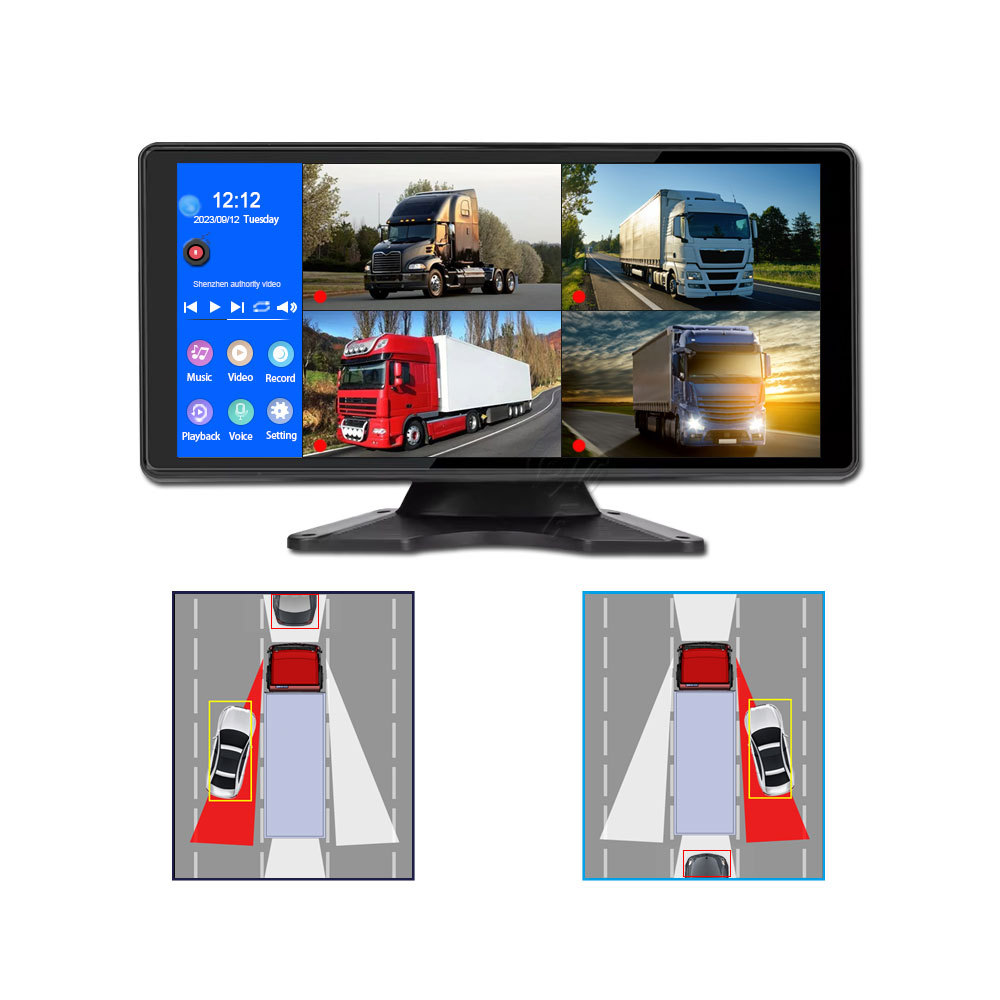

Active Safety Early Warning System
|

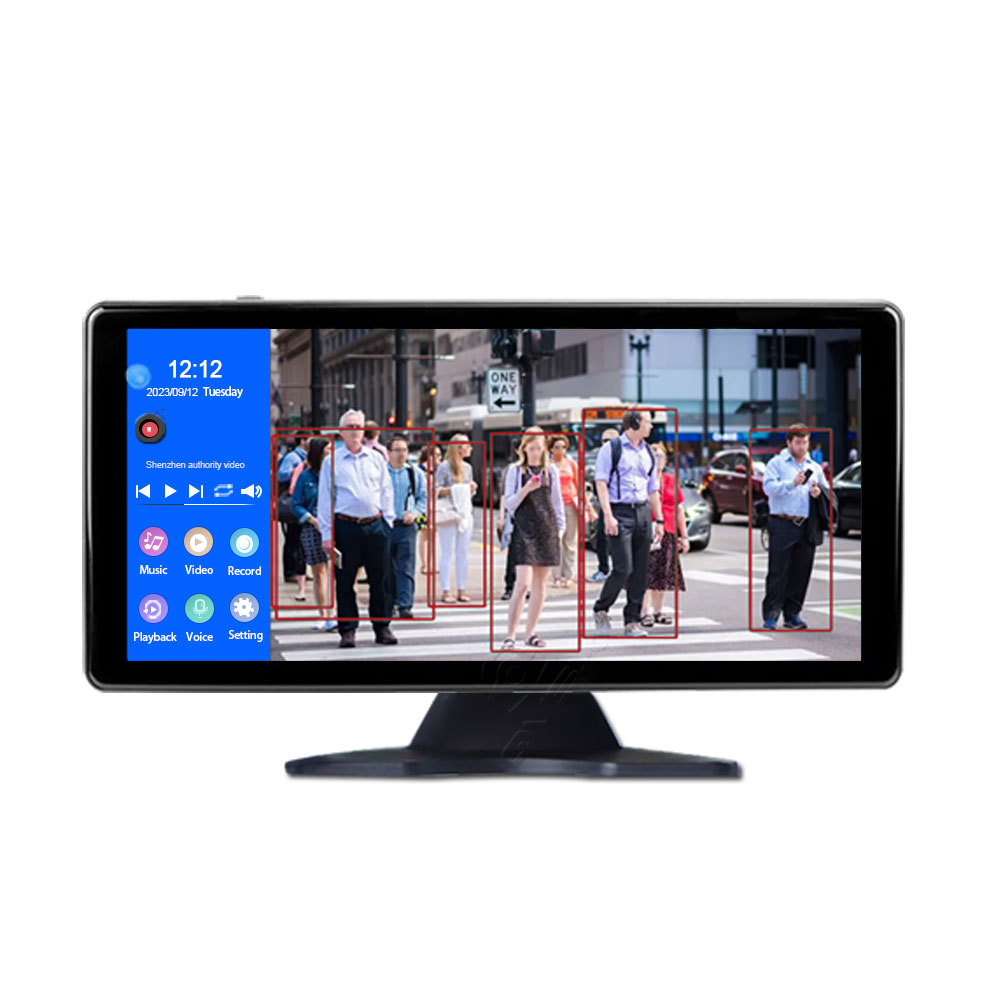

pedestrian detection
|
Front (switch), rear (switch, reverse trigger switch)
|
|
Left (switch, left turn trigger switch),
Right (switch, right turn trigger switch) |
||
|
Pedestrian detection alarm
|
Off, 2 seconds, 4 seconds, 6 seconds optional
|
|
|
AI intelligent anti-stealing oil
|
Off, left, right optional
|
|
|
Audible alarm
|
Alarm 1: front, rear, left, right, 4 channels optional
|
|
|
Alarm 2: front, rear, left, right, 4 channels optional
|
