Product Description:
1. Professional Vehicle-Mounted Power Supply Design, 8-36V DC Wide Voltage Input; Equipped with multiple protection circuits (overload/undervoltage/short-circuit/reverse connection), compatible with various vehicles;
2. Provides 12VDC power output for constant voltage power supply to peripheral devices such as cameras and monitors;

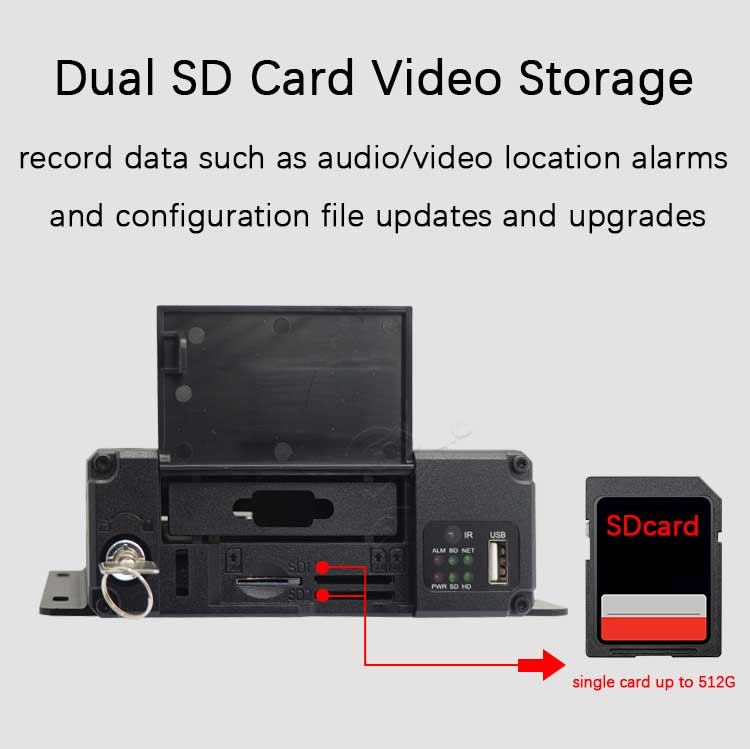

3. Dual SD card recording (supports high-capacity SD cards, up to 512GB per card), fully resistant to vibration/dust-induced data corruption, ensuring reliability in extreme road conditions;
4. Supports 1 x 2.5-inch HDD (max 4TB storage);
5. Supports GPS/BD and 4G networks;
6. Software upgrades via SD card or OTA remote updates using partition backup technology to prevent system crashes;

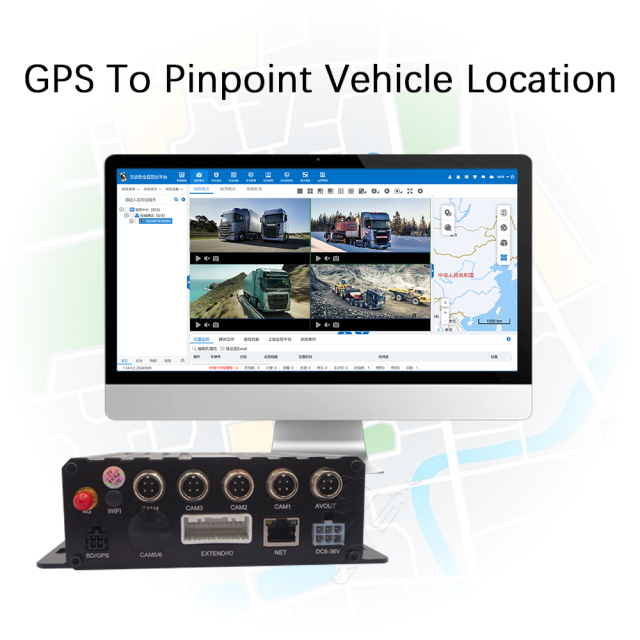

7. Professional playback analysis software with synchronized GPS/BD trajectory, vehicle status, speed, and audiovisual data review;
8. Centralized management software enables real-time vehicle image/alarm transmission;
9. ADAS Features: Forward collision warning/ Lane departure warning/ Pedestrian collision avoidance/ Pre-start alert for leading vehicles
DMS Features: Seatbelt detection/ Facial recognition/ Fatigue driving detection/ Smoking/cellphone use alerts

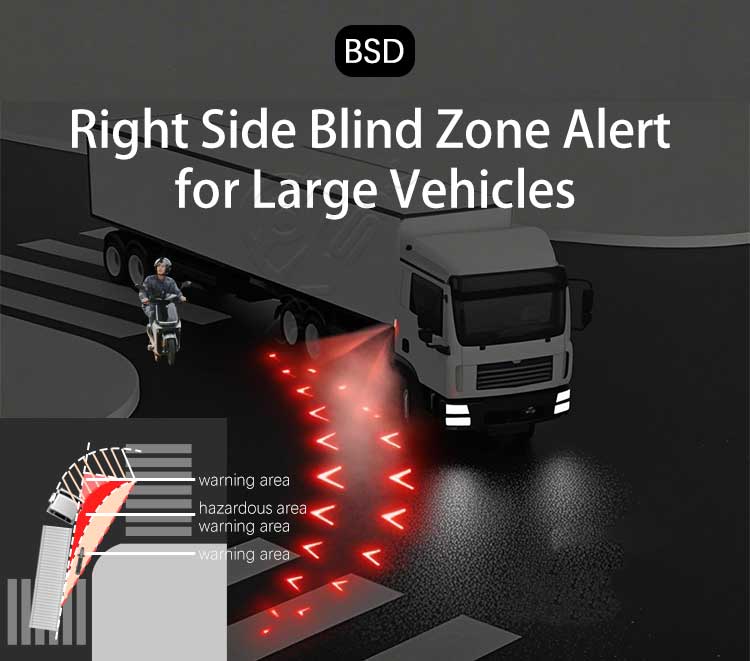

BSD Features: Blind spot detection (right side)/ Audible and visual alarms

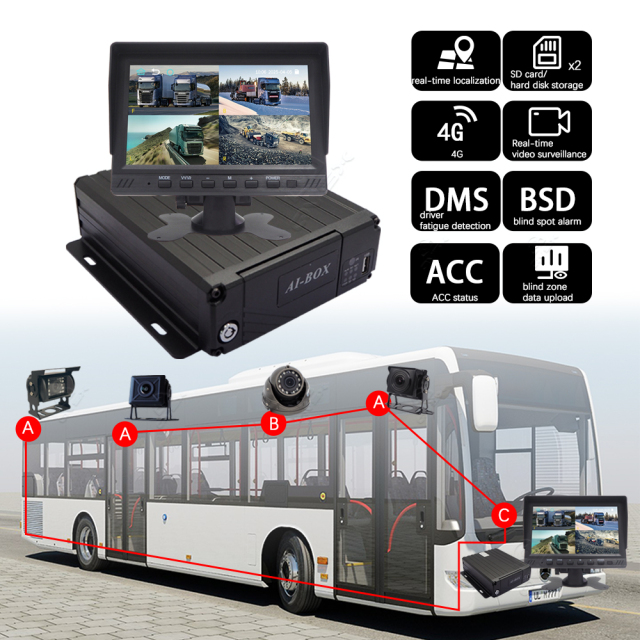

Product Function:

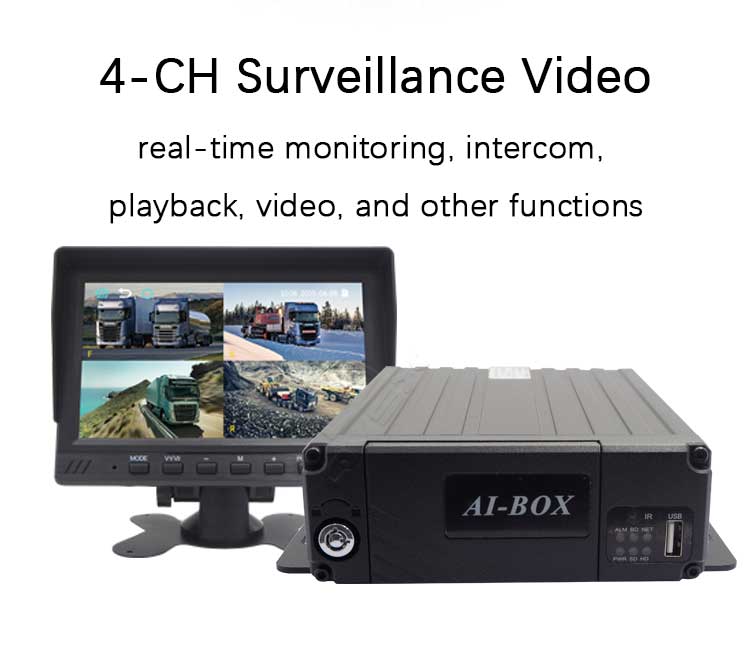

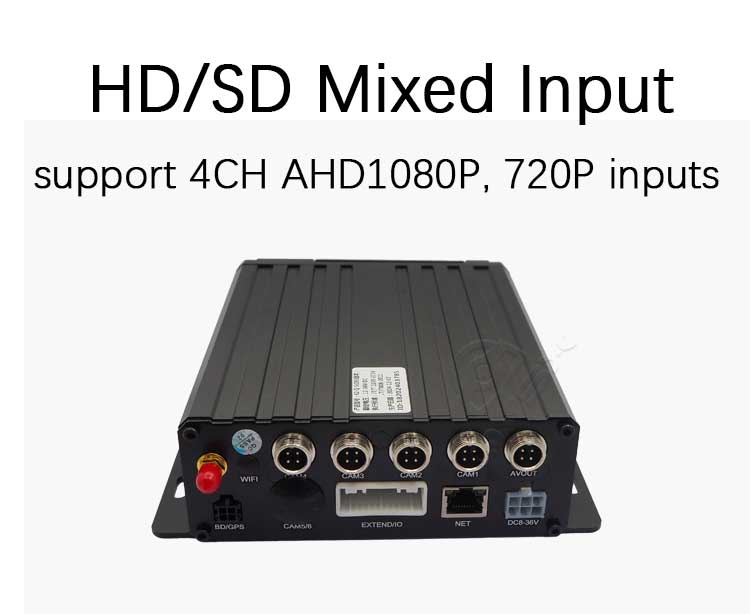

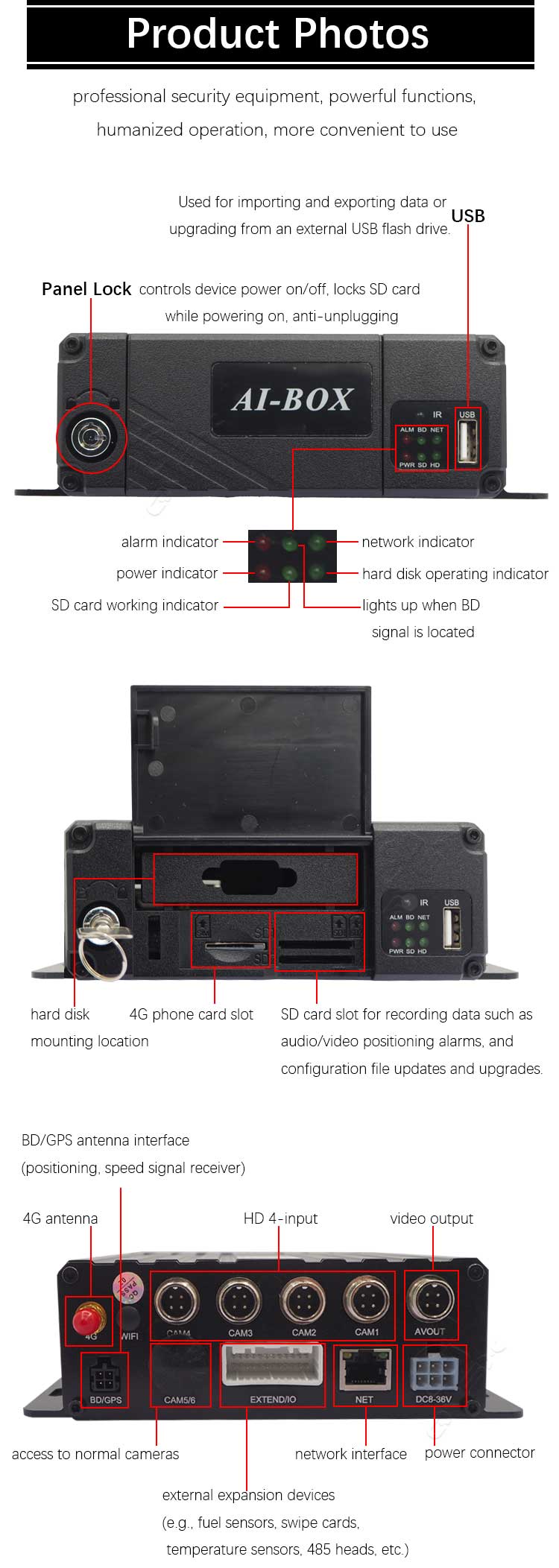

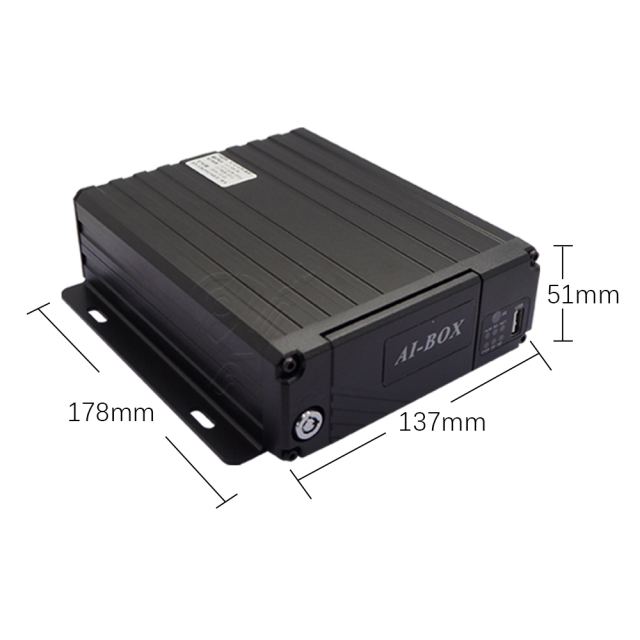

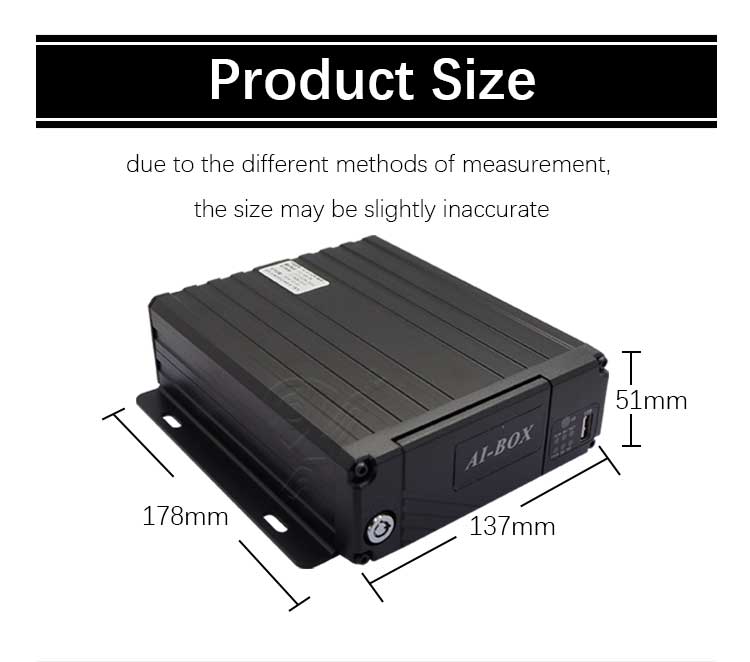

Product Design:

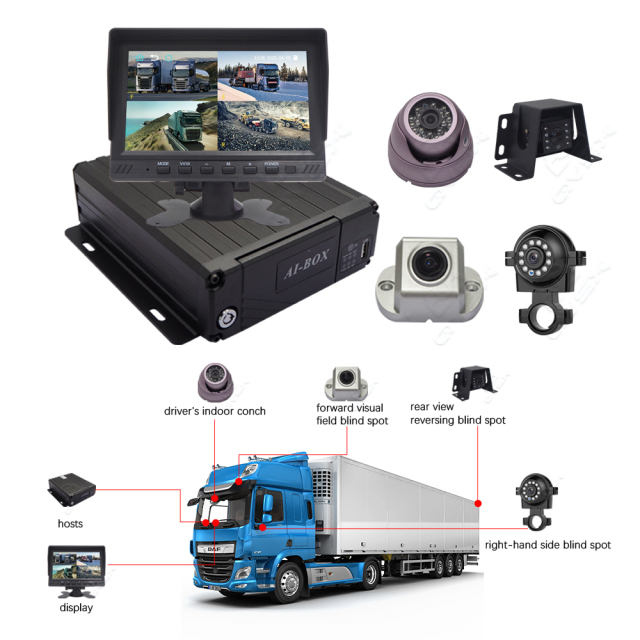

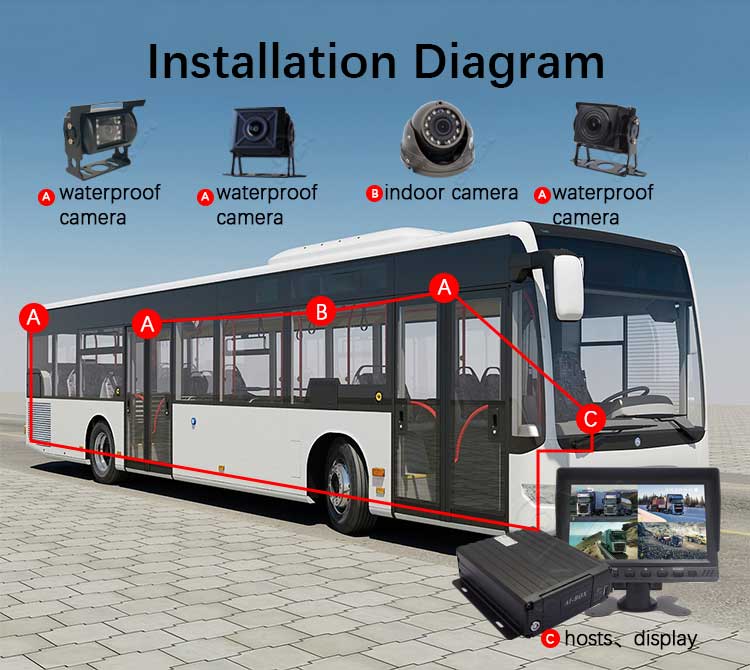

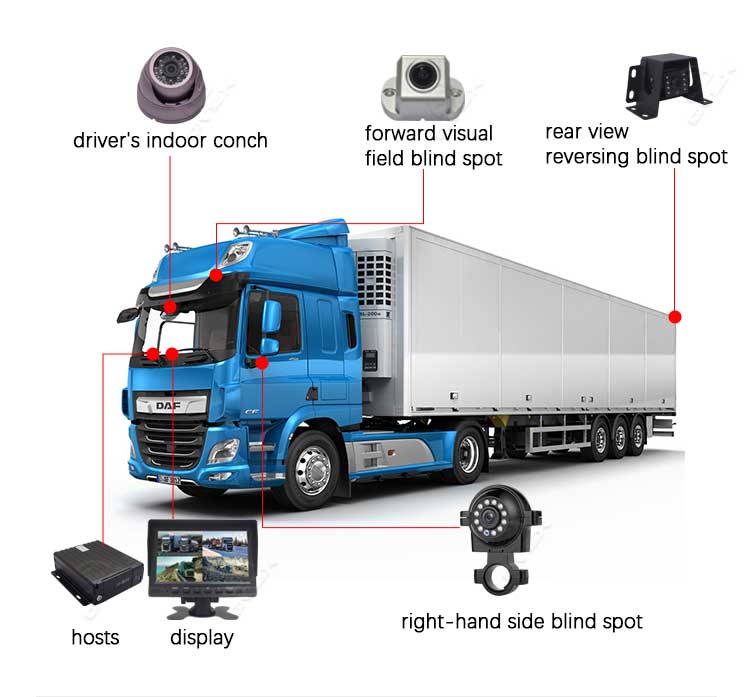

Application:

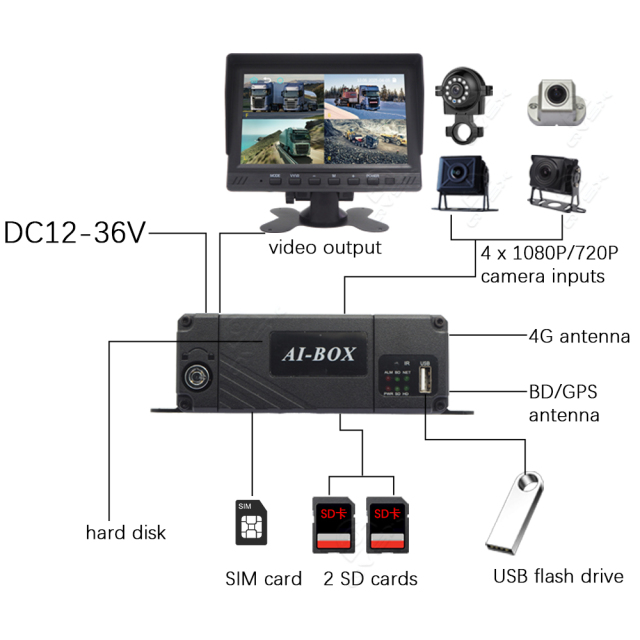

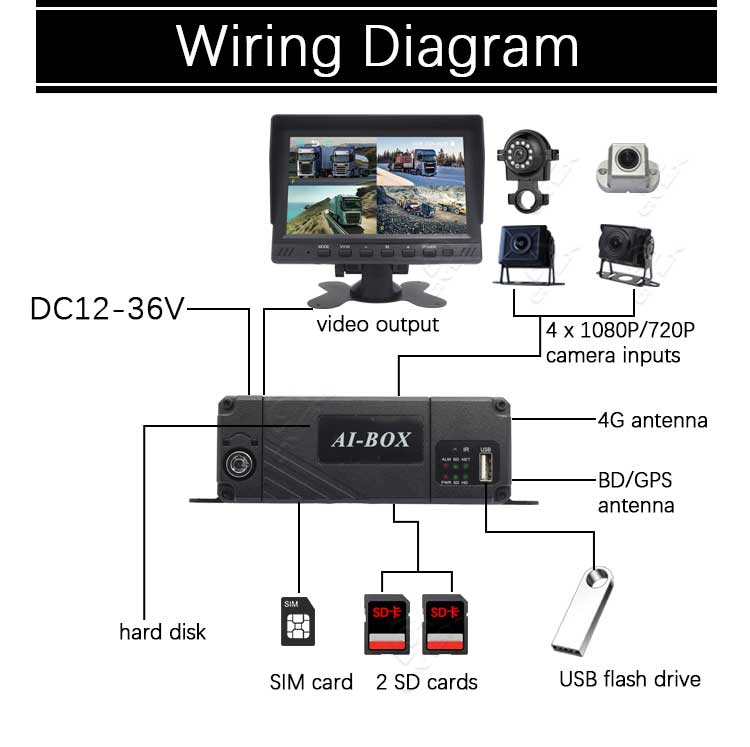

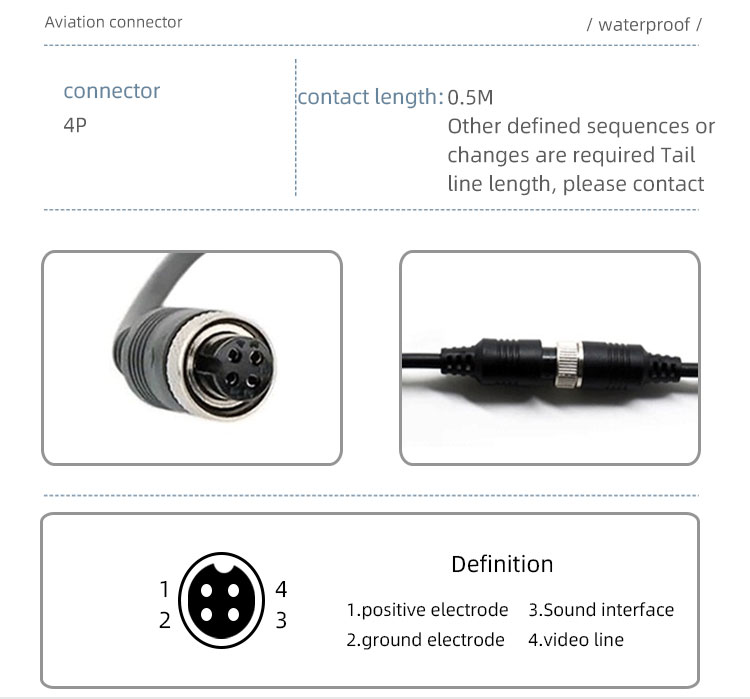

Wiring Diagram:
