| Item | Parameter | |
| Operating system | Linux | |
| System speech | Chinese, English, other (customizable) | |
| Video compression format | H.265 | |
| OSD | Character overlay function, support time, date, vehicle ID and other information image overlay | |

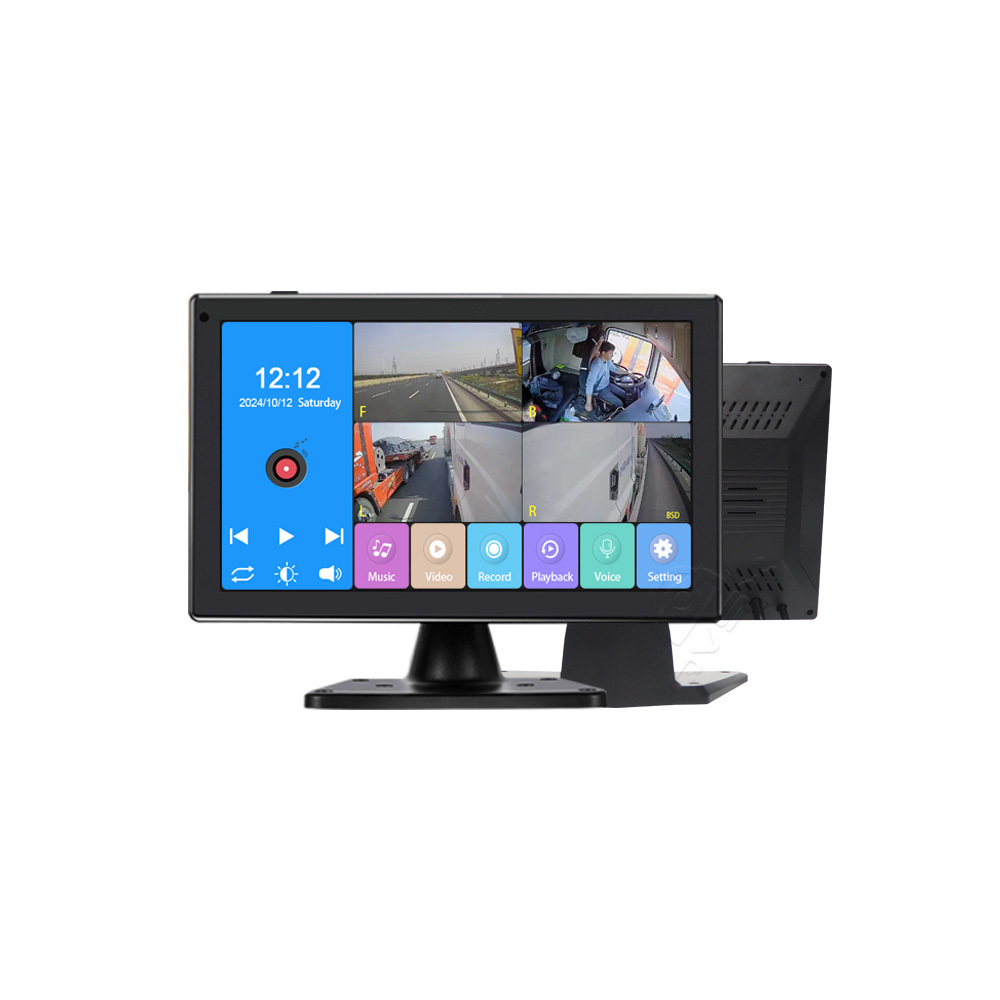

| GUI | Graphical OSD interface | Connect to the RGB screen and set various parameters of the system by touch |
| video | video input | 4 channels 720P AHD HD video input, aviation head interface, 1.0Vp-p, 75Ω |

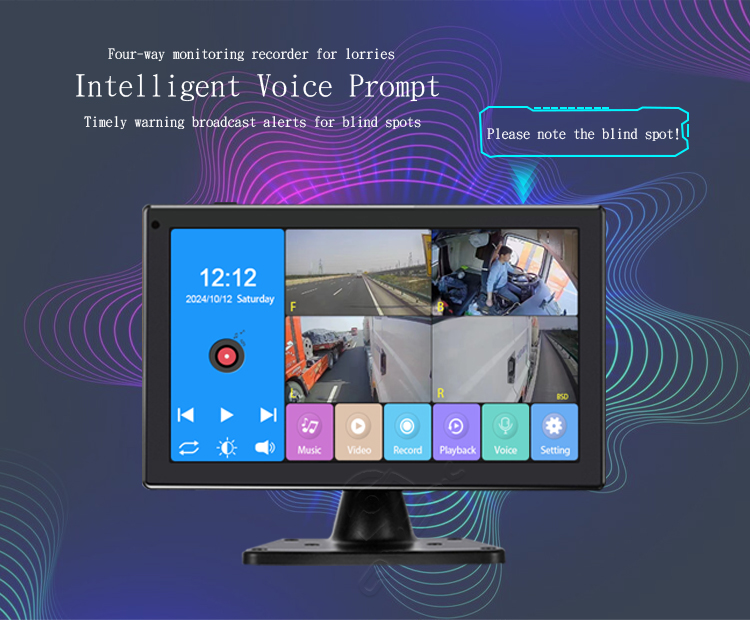

| Preview function | Single-channel, 4-screen splicing preview, support event trigger, single-channel full-screen display function | |
| Video resolution | Supports 720P video resolution | |
| Recording rate | PAL:100 frames /s, CCIR625line,50 fields NTSC:120 frames /s, CCIR525line,60 fields 720P: 800Kbps - 4Mbps, Class 8 image quality is optional |
|
| Video recording mode | Default automatic video recording, support ignition video | |

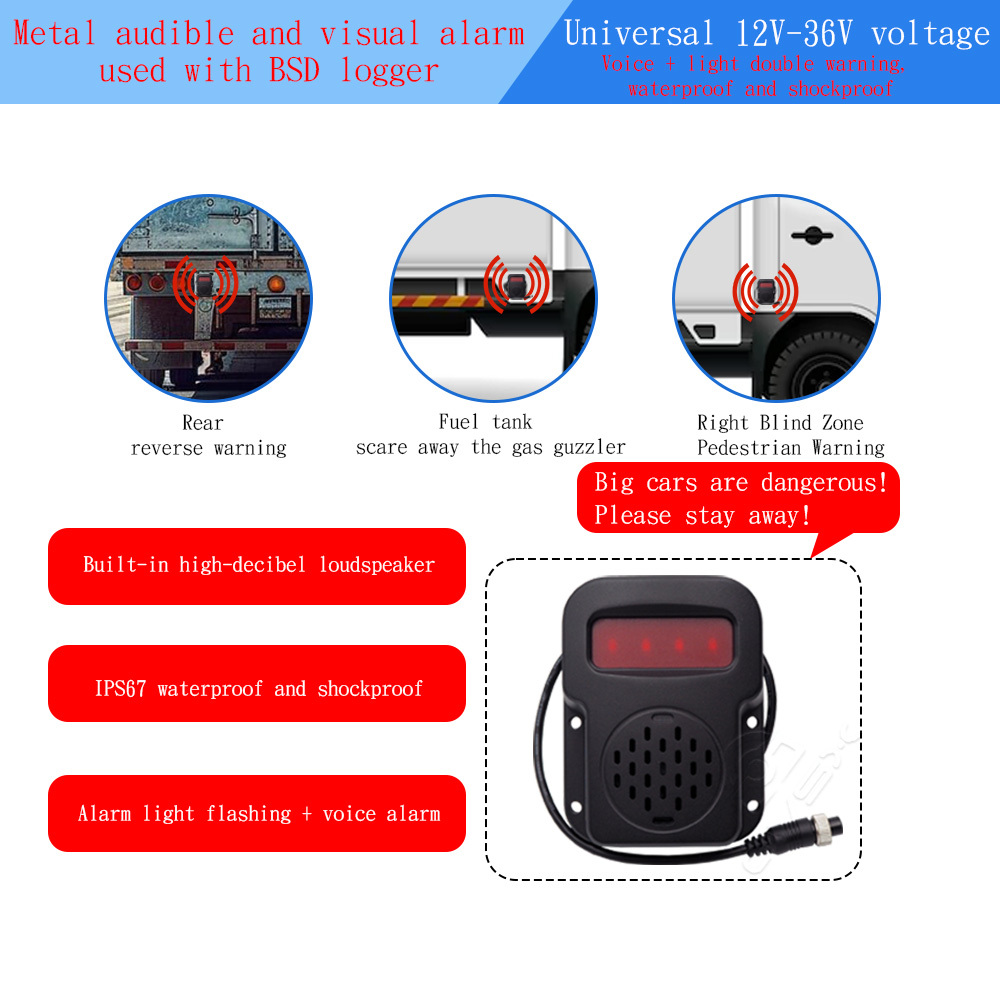

| Alarm input | 3 level alarm inputs | |
| Video recording store |

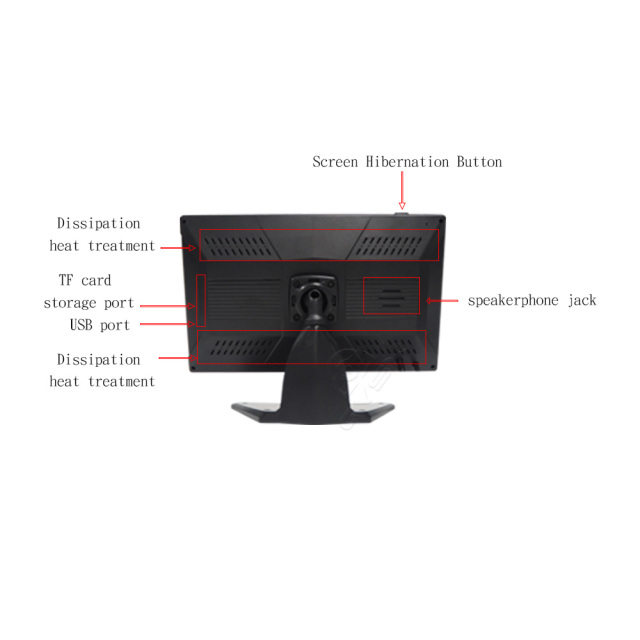

Storage | Supports a maximum of 1*512G large capacity TF card |
| Upgrade mode | Support TF card local upgrade | |
| File format | MJPEG universal video format | |
| File system | exFAT32 file system | |
| Video recording playback |
Video retrieval | Search video files by recording time |
| Playback | Only single-channel playback is supported | |
| Power supply and Power dissipation |
Power management | Adaptive wide power input, with overload, under voltage, short circuit, reverse connection and other protection functions;Support delay shutdown function. |
| Input voltage | DC:+ 10v - + 36v | |
| Output voltage | + 12 v@1.5a | |
| Power dissipation | Normal working state < 14W, standby state < 0.5W | |
| Professional environment | Temperature | -20℃ -+ 70℃ |
| Humidity | 20% - 80% | |

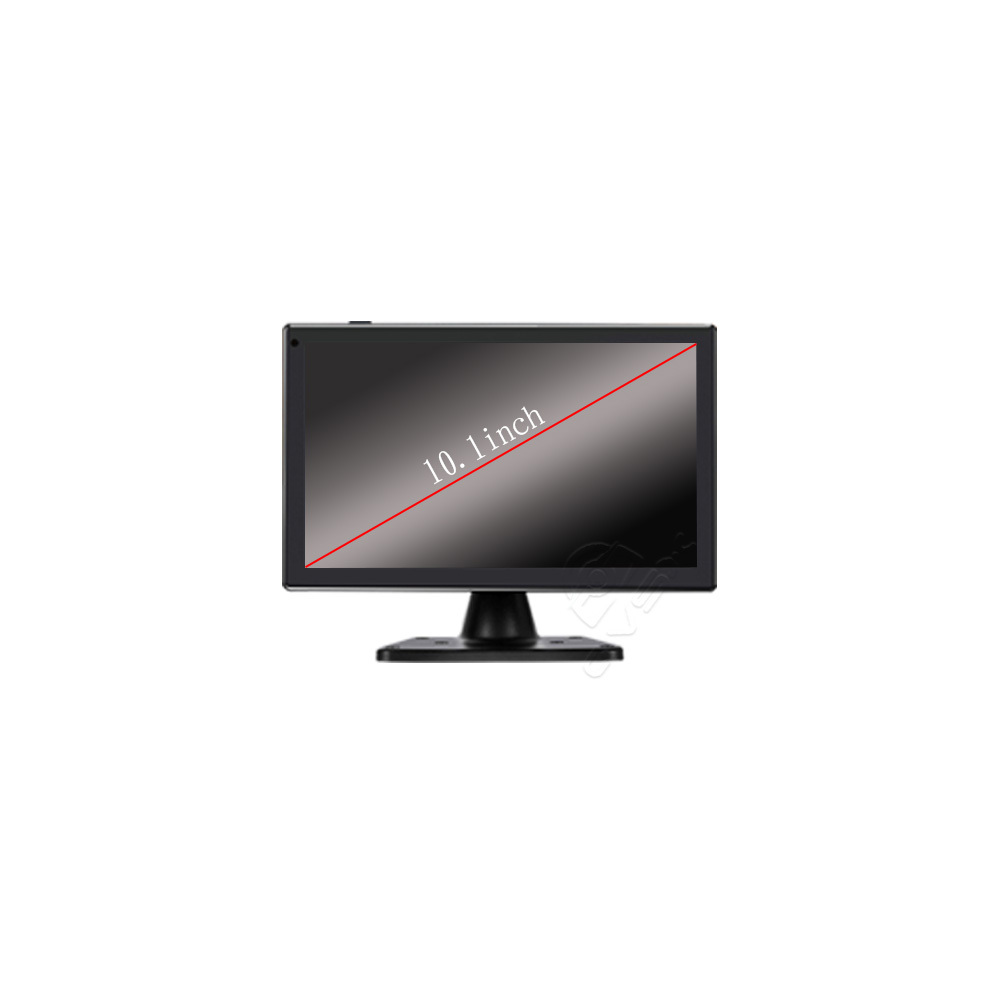

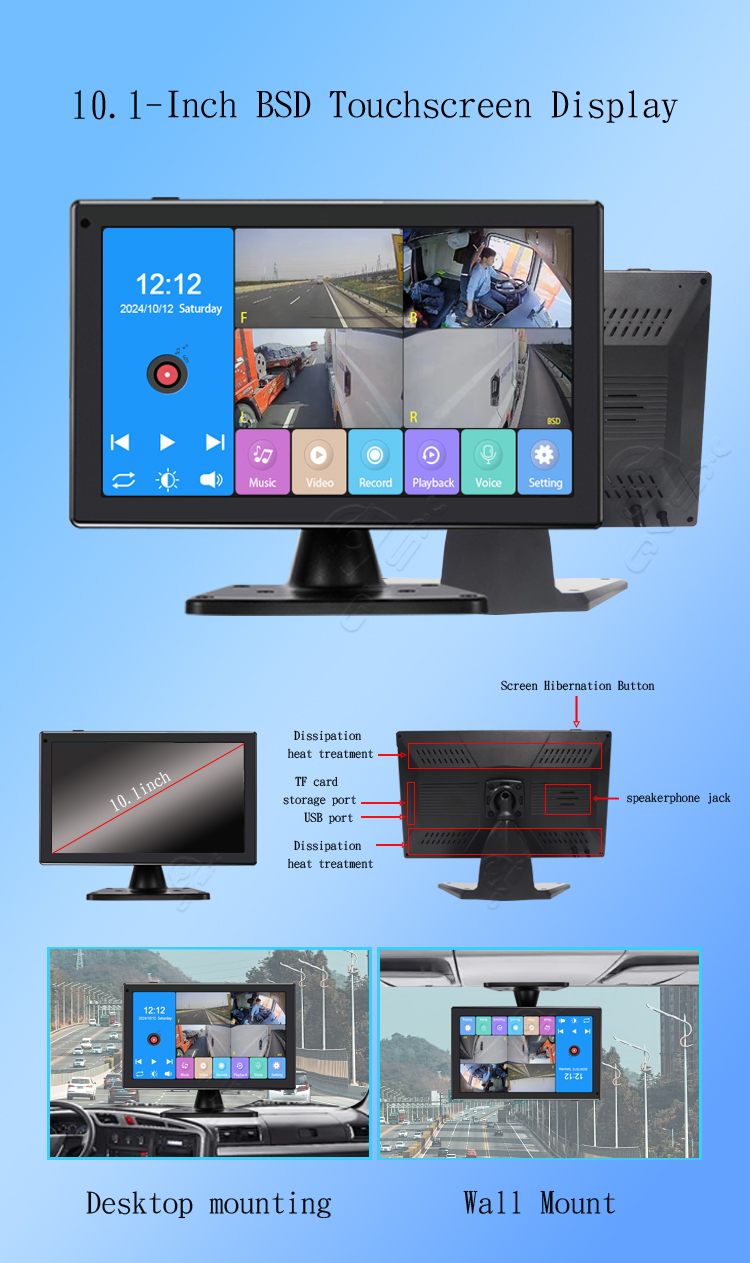

| Size | Size | The machine size is 10.1 inches, (250mm(L)*40mm(W)*155m(H) without support |
| Weight | 1.26KG including screen support, full set of accessories | |
